Product Description:

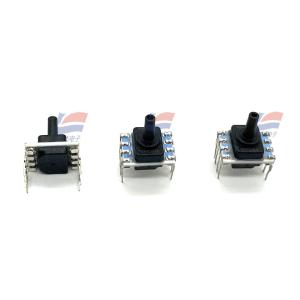

HSCDLND001PGAA5 Alumina Ceramic Substrate Gauge Pressure 1psi Pressure Sensor
Features:
Onboard pressure sensor TruStability™ HSC series compensation. TEB (total error band) : ±1% FSS to ±3% FSS. (differential pressure, gauge pressure), low (absolute pressure, differential pressure, gauge pressure). Digital or analog output. DIP, SIP, SMT
Range of pressure
±1.6 mbar to ±10 bar, ±160 Pa to ±1 MPa, ±0.5 inH20 to ±150 psi
The Silicon Ceramic (HSC) series is a piezoresistive silicon pressure sensor that provides a proportional analog or digital output to provide pressure readings across a full scale pressure span and temperature range. The HSC series can perform calibration and temperature compensation for sensor zero position, sensitivity, temperature coefficient and nonlinearity using the integrated circuit (ASIC) on the circuit board. The calibrated analog and digital outputs are updated at a rate of about 1 kHz and 2 kHz, respectively.
The HSC series is calibrated in the temperature range 0°C to 50°C [32°F to 122°F]. The sensor features a single power supply of 3.3Vdc or 5.0Vdc.
These sensors can measure absolute, gauge or differential pressure. The absolute pressure sensor uses the vacuum pressure as the internal reference value, and its output value is proportional to the absolute pressure. The gauge pressure sensor takes atmospheric pressure as a reference and provides an output value proportional to the difference in atmospheric pressure. Differential pressure sensor can measure pressure between two pressure ports.
TruStability® pressure sensors are designed to work with non-corrosive and non-ionic gases, such as air and other dry gases. A wealth of options extend the performance of these sensors to pressure ranges higher than 40 mbar, 4 kPa, and 20 inH2O.
Specifications:
| Type of pressure | A D G |
| Working pressure | 1PSI |
| Output type | I2C SPI |
| Output voltage | 3.3 |
| precision | 0.25% |
