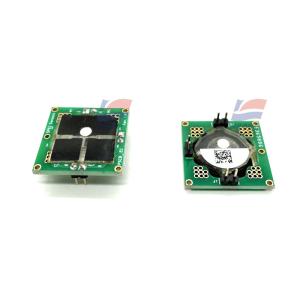

3SP-O3-5P Air quality monitoring for industrial safety gas sensors Small size and low profile
BENEFITS
• Small Size with Low Profile (20x20x3 mm)
• Long Life (10 years expected life)
• Fast Response (< 15 seconds)
• Low Power Consumption
• Individually Calibrated (NIST Traceable)
• ROHS Compliant
• Improved stability and ppb performance
BENEFITS
• Small Size with Low Profile (20x20x3 mm)
• Long Life (10 years expected life)
• Fast Response (< 15 seconds)
• Low Power Consumption
• Individually Calibrated (NIST Traceable)
• ROHS Compliant
• Improved stability and ppb performance
Contact the factory to discuss specific concerns that might damage the sensor performance or life.
Condensation and Water (1)
Salt Water Contamination (1)
High Temperature Operation (> 70C) for more than 1 month
Low Humidity Operation (< 15% RH) for more than 3 months
High Bias voltage
Highly contaminated air over a prolonged period
High levels of particles or soot (unless proper filtering is provided)
| Operating Temperature Range | -30 to 50 C (-20 to 40 C continuous) |
| Operating Humidity Range – non-condensing | 0 to 100% RH (15 to 95% continuous) |
| Power Consumption | 10 to 50 uW (circuit & ambient O3 dependent) |
