Product Description:

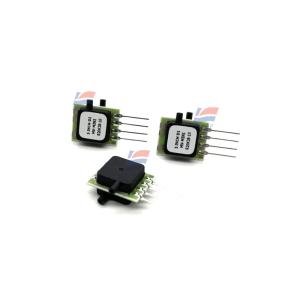

YJJ 5 INCH- D1B-MV Mini DC Voltage Not Higher Than +16V Pressure Sensor
Features:
Miniature amplified output pressure sensors are based on proprietary technology to reduce - output offset or common-mode errors. The model provides a calibrated amplified output with superior output offset characteristics. Compared with traditional compensation, the output offset error, preheating stability, long-term stability and position sensitivity caused by temperature change are - reduced. In addition, the sensor uses a silicon micromechanical stress concentration enhancement structure to provide a very linear output for measuring pressure.
5 INCH- D1-P4V-mini pressure sensor technical specifications
Parameter Value Search alternative is selected
Sex can
Working pressure range -0.1806 to 0.1806 psi (-0.1271 to 0.1271 m H2O)
features
Pressure type Differential pressure
Measurement Technology Other
Measuring medium gas
Output signal analog voltage
Feature strip temperature compensation
The environment
Operating temperature -40 to 257 F (-40 to 125 C)
More Technical Information
Product type Sensing element
More specifications
Measure pressure type Differential
Pressure Sensors
Specifications:
| Operating temperature | -40 to 257 F (-40 to 125 C) |
| Working pressure range | -0.1806 to 0.1806 psi |
| Sensitivity | 0.3±0.1μA/ppm |
| Baseline (20 ℃) | < ± 0.2 mA |
