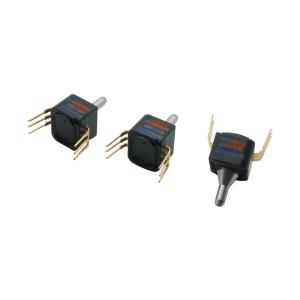

40PC150G2A Pressure Sensor For Electronic Braking Systems Engine Oil Level Detection
Manufacturing Process and Materials:
Adopts silicon piezoresistive technology, using semiconductor single crystal material. The design integrates temperature compensation, output zero and full-scale calibration, and amplification functions into a single silicon chip through a monolithic silicon wafer design.
Pin Package:
6-pin DIP (Dual In-line Package). Three pins on one side are for power supply, ground, and output, while the three pins on the other side are for fixing. The fixing pins can also be removed to make the pressure port horizontal to the PCB.
Pressure Port Design:
Suitable for O-ring seal connection.
Medium Compatibility:
Compatible with various media, including dry air, water, coolant, and engine oil, etc. It is limited to media that do not corrode materials such as steel, brass, silicon, stainless steel, glass, and solder joints.
Application Fields:
Can be used in electronic braking systems, engine oil level detection, transmission fluid liquefaction
| Pressure Range | 0 - 150 psi (Gauge Pressure) |
| Output Signal | Analog, 0.5 - 4.5V |
| Operating Temperature | -45℃ to +125℃ |
| Storage Temperature | -55℃ to +125℃ |
| Supply Voltage | 5VDC |
| Supply Current | Max. 10mA |
| Output Source Current | Max. 0.5mA |
| Output Sink Current | Max. 1.0mA |
| Linearity | 0.15% F.S. |
| Manufacturing Process | Silicon Piezoresistive Technology |
| Package Type | 6 - pin DIP |
| Pressure Port Design | Suitable for O - ring Seal Connection |
