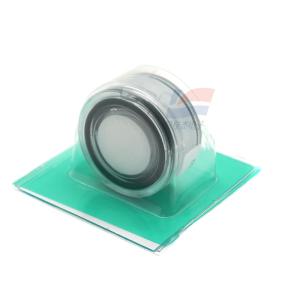

H2/CA-1000 3-Electrode Electrochemical Hydrogen Gas Sensor For Medical Applications
Key Features :
Highly selective H2 detection in presence of CO
Applications:
• Medical Applications
• H2 Detection in H2/CO-Mixtures
• Medical Applications
| Nominal Range | 0 - 1000 ppm |
| Maximum Overload | 2000 ppm |
| Inboard Filter | To remove CO |
| Output Signal | 28 ± 11 nA/ppm 1) |
| Resolution (Electronics dependent) | < 1.8 ppm |
| T90 Response Time | < 40 s |
| Typical Baseline Range (pure air, 20°C) | -10.0 ppm to 10.0 ppm |
| Maximum Zero Shift (+20°C to +40°C) | see Graph |
| Repeatability | < 2 % of signal |
