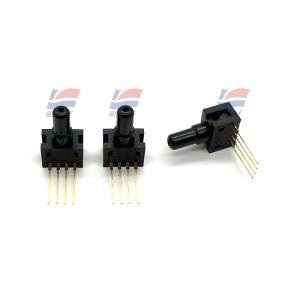

YJJ 24PCFFA6G Single Direct-Insertion Miniature Pressure Sensor Is Used In Medical Devices
Features:
Pressure Sensors 22/24/26PC Series
Gage and Differential/Unamplified
- 1 MICRO SWITCH Sensing and Control 11-800-537-6945 USA1F1-815-235-6847 International 11-800-737-3360 Canada 17
GAGE SENSOR
Pressure is applied to port P2. Port P1 vents to ambient pressure
Mounting Dimensions (for reference only)
1 x 4 Termination (Style 1), Straight Port (Style A)
Pin 1 is notched, and is shown at the right of the package. Pin 2 is next to Pin 1, etc.
26PC SMT PERFORMANCE CHARACTERISTICS (AT 10 VDC ±0.01 VDC EXCITATION, 25 °C)
Min. Typ. Max. Units
Excitation Voltage — 10.0 16.0 Vdc
Response Time — — 1.0 ms
Input Resistance 5.5 k 7.5 k 11.5 k Ohm
Output Resistance 1.5 k 2.5 k 3.0 k Ohm
Span P2>P1(1) Min. Typ. Max.
0 to 1 14.7 16.7 18.7 mV
0 to 5 47 50 53 mV
0 to 15 96 100 104 mV
Null Offset Min. Typ. Max.
0 to 1 -2.0 0 +2.0 mV
0 to 5 -2.0 0 +2.0 mV
0 to 15 -2.0 0 +2.0 mV
Linearity (BFSL P2>P1) Typ. Max.
0 to 1 — ±0.50 ±1.75 % span
0 to 5 — ±0.50 ±1.5 % span
0 to 15 — ±0.50 ±1.0 % span
Null Shift 25 °C to 0 °C, 25 °C to 50°C(2) Typ. Max.
0 to 1 — — ±1.0 mV
0 to 5 — — ±1.0 mV
0 to 15 — — ±1.0 mV
Span Shift 25 °C to 0 °C, 25 °C to 50°C(2) Typ. Max.
0 to 1 — ±1.5 ±4.5 % span
0 to 5 — ±1.0 ±1.7 % span
0 to 15 — ±0.75 ±1.5 % span
Repeatability and Hysteresis Typ. Max.
0 to 1 — ±0.2 — % span
0 to 5 — ±0.2 — % span
0 to 15 — ±0.2 — % span
Overpressure P2>P1; P1>P2 Typ. Max.
0 to 1 — — 20 psi
0 to 5 — — 20 psi
0 to 15 — — 45 psi
Notes:
1. Span is the algebraic difference between output at maximum rated operating pressures and output at 0 psi.
2. Temperature error is calculated with respect to 25 °C.
SPECIFICATIONS
Characteristic Description
Storage Temperature -55 °C to 100 °C [-67 °F to 212 °F]
Operating Temperature -40 °C to 85 °C [-40 °F to 185 °F]
Compensated Temperature 0 °C to 50 °C [32 °F to 122 °F]
Alignment Pins 0,86 mm [0.034 in] diameter pins extend through PCB
Port Diameter 1,88 mm [0.074 in] diameter uses standard 0,59 mm [0.0625 in] ID tubing
Port Orientation Parallel to PCB (low profile on board)
Pick Up Feature 3,18 mm [0.125 in] feature on port cover
SMT Solder · Sn 96.5 Ag 3.5 No Clean Flux
· Sn 63 Pb 37 No Clean Flux
SMT Reflow Profile Max peak temperature of 260 °C [500 °F] for 10 seconds
Media Compatibility Both ports are limited to media that are compatible with polyphthalamide,
fluorosilicone and silicon.
Shock Qualification tested to 150 g
Vibration MIL-STD-202. Method 213
(150 g half sine 11 ms)
Weight 0.5 grams [0.0176 oz]
Specifications:
| Work pressure | 100 Psi |
| Overload pressure | 2800kPa (406 PSI) |
| Power supply voltage | 4.75 to 5.25VDC |
| Working current | ≤10 (typical 7)mA |
