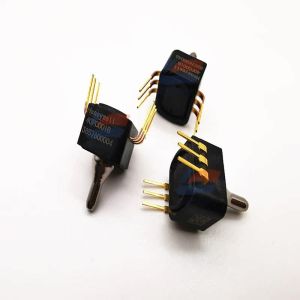

40PC001B2A Micro Bidirectional Pressure Sensor For Oil Level Detection Transmission Fluid Liquefaction Monitoring
Key Features:
Potential Applications:
It is suitable for multiple scenarios that require precise pressure detection, including hospital beds, ventilators, oxygen concentrators, blood pressure measurement equipment, electronic braking systems, oil level detection, transmission fluid liquefaction monitoring, and air conditioning systems.
| Pressure Type | Bi-directional |
| Operating Pressure Range | ±50 mmHg |
| Proof Pressure | 170 mmHg |
| Supply Voltage | Typical 5 V |
| Output Voltage | 0.5 V to 4.5 V (analog voltage, linearly proportional to input pressure) |
| Accuracy | ±0.25% |
| Hysteresis & Repeatability | 0.15% span (typical) |
| Response Time | 1 ms (for 0 to full-scale pressure step change, measured at 10% and 90% of full-scale) |
| Operating Temperature | -45°C to 125°C (-49°F to 257°F) |
| Storage Temperature | -55°C to 125°C |
| Supply Current | Maximum 10 mA |
| Output Current | Maximum 0.5 mA (source current); Maximum 1.0 mA (sink current) |
| Package | 6-pin DIP |
| Dimensions | 13.2 x 11.2 x 19.8 mm |
