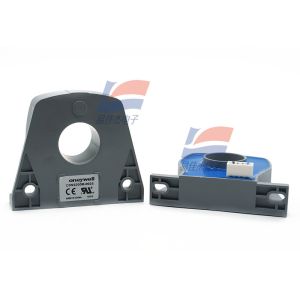

CSNS200M-002S Closed - loop Hall Effect Current Sensor For Industrial Control Equipment Automotive Electronics

CSNS200M-002S Closed - loop Hall Effect Current Sensor For Industrial Control Equipment Automotive Electronics

Core Features:

1. Versatile Measurement Capability: It can reliably measure DC, AC, and pulse currents, adapting to diverse current detection scenarios in industrial and electronic systems.
2. High Precision and Stability: With linearity better than ±0.20% and low offset current drift, it maintains accurate measurement results even when the temperature changes within the operating range.
3. Fast Response and Wide Bandwidth: The response time is less than 500ns and the bandwidth covers DC to 150kHz, which can keep up with the rapid changes of high - speed pulse currents and meet the requirements of high - speed current detection.
4. Excellent Electrical Isolation: The electrical insulation design between the primary and secondary circuits enhances the safety of the sensor in high - voltage application scenarios and avoids mutual interference between circuits.
5. Strong Environmental Adaptability: It can work stably in the temperature range of - 40℃ to 85℃, suitable for harsh industrial environments and automotive working conditions.

Typical Applications:

1. Industrial Control Equipment: Variable - speed drive devices, servo motors, welding equipment power supplies, UPS (Uninterruptible Power Supply), and telecommunications power supply systems.
2. Automotive Electronics: Battery management systems, which are used to monitor the charging and discharging current of automotive batteries to ensure the stable operation of the power system.
3. Protection & Detection Devices: Over - current protection circuits and ground fault detectors, providing rapid current monitoring signals for equipment safety protection.
4. Robotics & Automation: Current detection in robotic motion control systems, ensuring precise control of motor operations.
